Spirolox® Retaining Rings

No Gap - 360° retaining surface
Spirolox spiral retaining rings have no protruding ears to interfere with mating components (uniform cross-section)
Economically produced in stainless steel because the coiling process produces no scrap
Smalley is the inventor of the spiral retaining ring
No-Tooling-Charges^® on custom designs
Easy to assemble and remove
No gap or lugs provide for a functional and aesthetically pleasing ring
Can operate in an internal and external groove at the same time
Spirolox rings are used in a wide variety of applications and industries
Free samples to test in your application

Spiral Retaining Ring vs. Circlip

Spirolox Retaining Rings, also known as Spiral Retaining Rings, are available exclusively from Smalley.

Spiral retaining rings have No Ears to Interfere^® with mating components in your assembly. Spiral retaining rings are manufactured by edgewinding, otherwise known as coiling flat wire on edge. Because coiling produces a retaining ring with no scrap, the Smalley Retaining Ring can be economically produced in carbon steel, stainless steel, coppers, and many other alloys.

Smalley offers over 6,000 standard retaining rings, which are readily available in both carbon and stainless steel. If you require custom designs, take advantage of Smalley's No-Tooling-Cost process; a process perfect for large runs, prototypes, and midstream design changes.

Whatever your application, Smalley has a cost-effective and innovative design solution.

Spiral Retaining Rings are Interchangeable with Circlips and Snap Rings

Spiral retaining rings are interchangeable with ordinary snap ring (Circlip) grooves. Find the right ring for your application by visiting our Interchange Listing page. Spiral Retaining Ring Compared to a Circlip

Request Samples

Request free samples of any of our standard parts to test in your application.

Spiral Retaining Ring Types Available

Light

VH & VS (Imperial) / VHM & VSM (Metric)

The VH/VS and the VHM/VSM Series Spirolox Retaining Ring are specified for light duty, low clearance applications or where axial positioning rather than load carrying is the principal function. These retaining rings are economically produced and easy to use and are ideal for applications where thrust loads are light duty.

Spirolox Internal 1 Turn Retaining Ring
VH (Imperial) and VHM (Metric) Retaining Ring

Spirolox External 1 Turn Retaining Ring
VS (Imperial) and VSM (Metric) Retaining Ring

Standard Parts
1/4" - 10" Diameters
6 mm – 300 mm Diameters
Carbon and Stainless Steel

Medium

WH & WS (Imperial)

The WH & WS Series Spirolox Retaining Ring is Smalley's most popular retaining ring series. Smalley engineers have developed the greatest number of standard retaining ring sizes in this series, allowing customers to easily select and order parts for their applications. WH & WS spiral rings easily handle thrust loads imposed by light or medium series bearings.

Spirolox Internal 2 Turn Retaining Ring
WH Series Retaining Ring

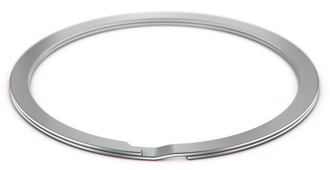

Spirolox External 2 Turn Retaining Ring
WS Series Retaining Ring

Standard Parts
1/2" - 11" Diameters
Military and Aerospace Specifications
Carbon and Stainless Steel

EH & ES (Metric Aerospace)

The EH & ES Series metric retaining rings are Smalley's standard Spiral Retaining Rings produced to Metric Aerospace specifications. They fit grooves specifically designed for 2-turn spiral retaining rings and accommodate light to medium duty applications.

Spirolox Internal 2 Turn Retaining Ring
EH Series Retaining Ring

Spirolox External 2 Turn Retaining Ring
ES Series Retaining Ring

Standard Parts

6 mm – 280 mm Diameters
Carbon and Stainless Steel

Medium Heavy

WHT & WST (Imperial)

Many original equipment manufacturers have set groove dimensions specifically for the WHT & WST Series Spirolox Retaining Ring. While easier to install, this retaining ring series has a load carrying ratings close to our heavy duty retaining ring designs.

Spirolox Internal 2 Turn Retaining Ring
WHT Series Retaining Ring

Spirolox External 2 Turn Retaining Ring
WST Series Retaining Ring

Standard Parts
1/2"-10 1/2" Diameters
Carbon and Stainless Steel

Heavy

WHM & WSM (Imperial)

The WHM & WSM Series Spirolox Retaining Ring is designed for the toughest retaining ring jobs. WHM & WSM series retaining rings use standard industry groove dimensions and are interchangeable with many stamped retaining rings. This series should be specified for thrust loads that demand deep groove, heavy section capacity.

Spirolox Internal 2 Turn Retaining Ring
WHM Series Retaining Ring

Spirolox External 2 Turn Retaining Ring
WSM Series Retaining Ring

Standard Parts
1/4"-15" Diameters
Military and Aerospace Specifications
Carbon and Stainless Steel

DNH & DNS (DIN Metric)

The DNH & DNS Series Spirolox Retaining Ring is Smalley's equivalent to the European or "Hard" metric retaining ring series. With their 2-turn offset configuration, these spiral rings will fit into the grooves established by DIN specifications.

Spirolox External 2 Turn Retaining Ring
DNH Series Retaining Ring

Spirolox Internal 2 Turn Retaining Ring
DNS Series Retaining Ring

Standard Parts
13 mm – 400 mm Diameters
Carbon and Stainless Steel

Have High-Rotational Requirements?

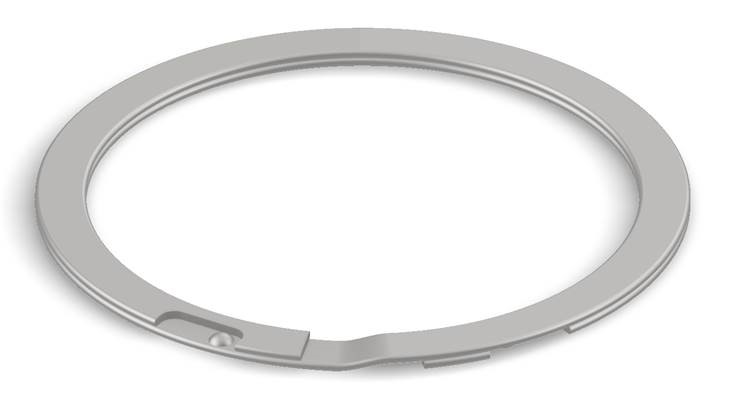

Self-Locking Retaining Rings are ideal for applications that have high rotational requirements. This feature allows the ring to function properly at speeds that exceed the recommended rotational capacity.

Learn more about our new revolutionary Revolox^® Self-locking retaining ring.

Check out our Self-Locking Rings >
